EXIT Exit Sign

Features

  • Available on QuickShip
  • Compact, low-profile design
  • Available as full-time AC-powered unit or emergency unit with battery backup
  • EM unit provides 90 minutes of emergency operation
  • Ultra-bright, energy-efficient, long-life LEDs in red or green
  • Fully automatic solid-state two-rate charger on EM units recharges battery in 24 hours
  • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
  • Unique design allows double face conversion in the field
  • Removable directional indicators
  • Custom message available
  • Self-diagnostic option performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes
  • Optional polycarbonate shield and wireguard provide added protection
  • Optional Salida faceplate
  • Dual circuit option (AC-only) allows for connection to two different supplies at the same time

Tools

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.

Electrical

Dual 120/277 voltage standard. 4.8V long life, maintenance- free, rechargeable NiCd battery when specified with EM power option.

Mounting

Mounting canopy for top or end mount. Universal knockout pattern on back plate for wall mount.

Listings

• UL 924 standard as an exit light suitable for dry or damp locations (0°C - +50°C).
• Meets NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• Certified to CEC under Title 20 Regulations.

Warranty

5-year limited warranty.

Accessories

Polycarbonate Shield

Wireguard

Housing Colors

Industry-Standard White

Black

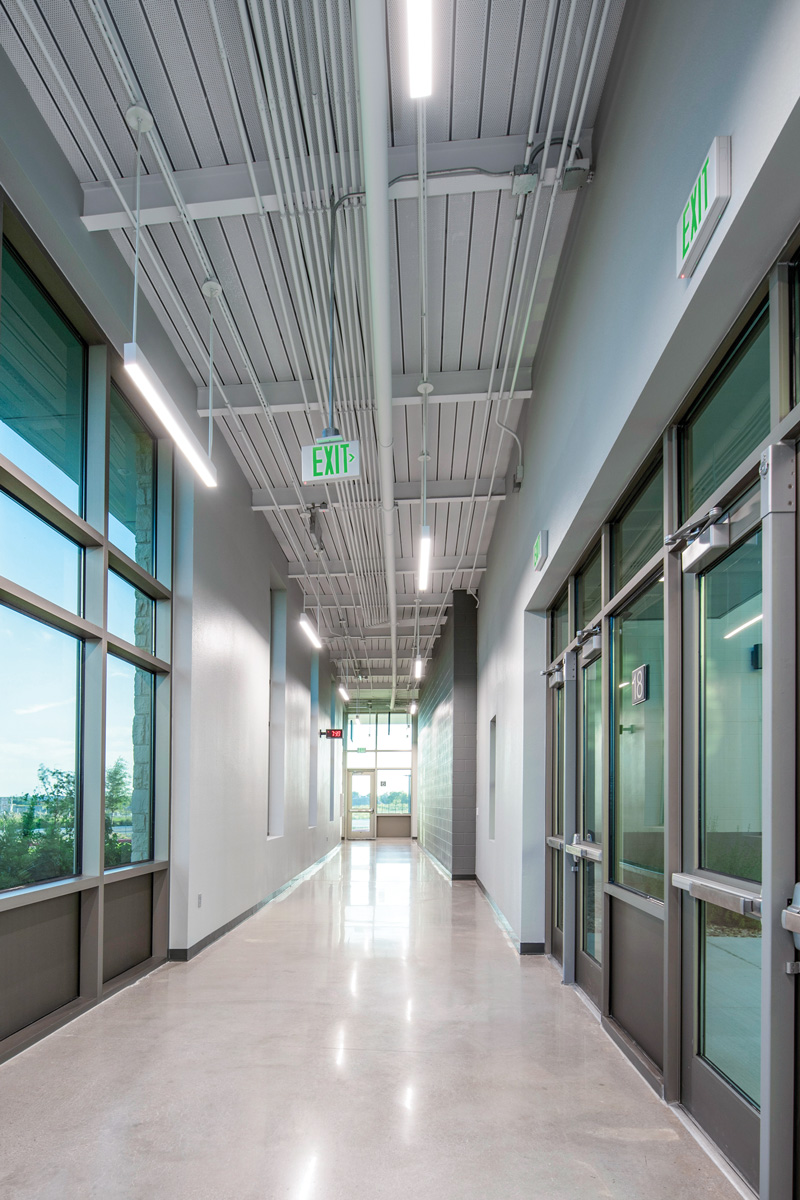

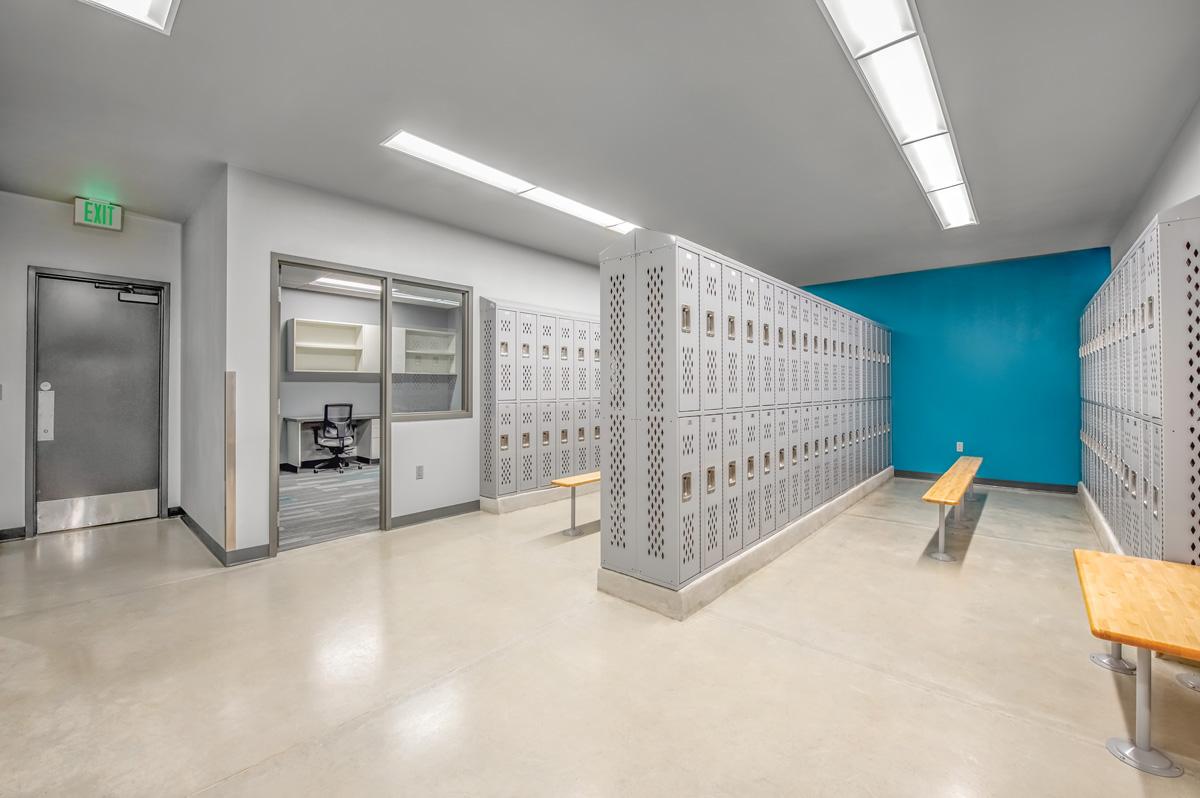

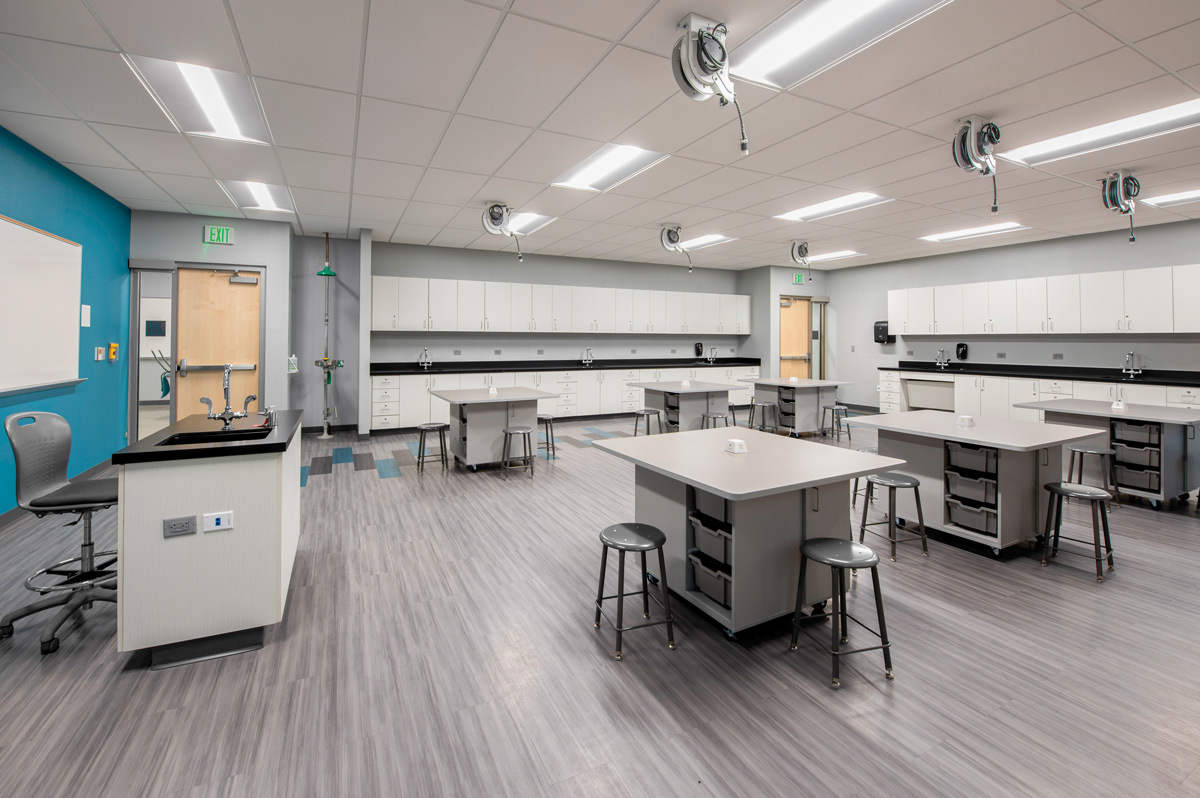

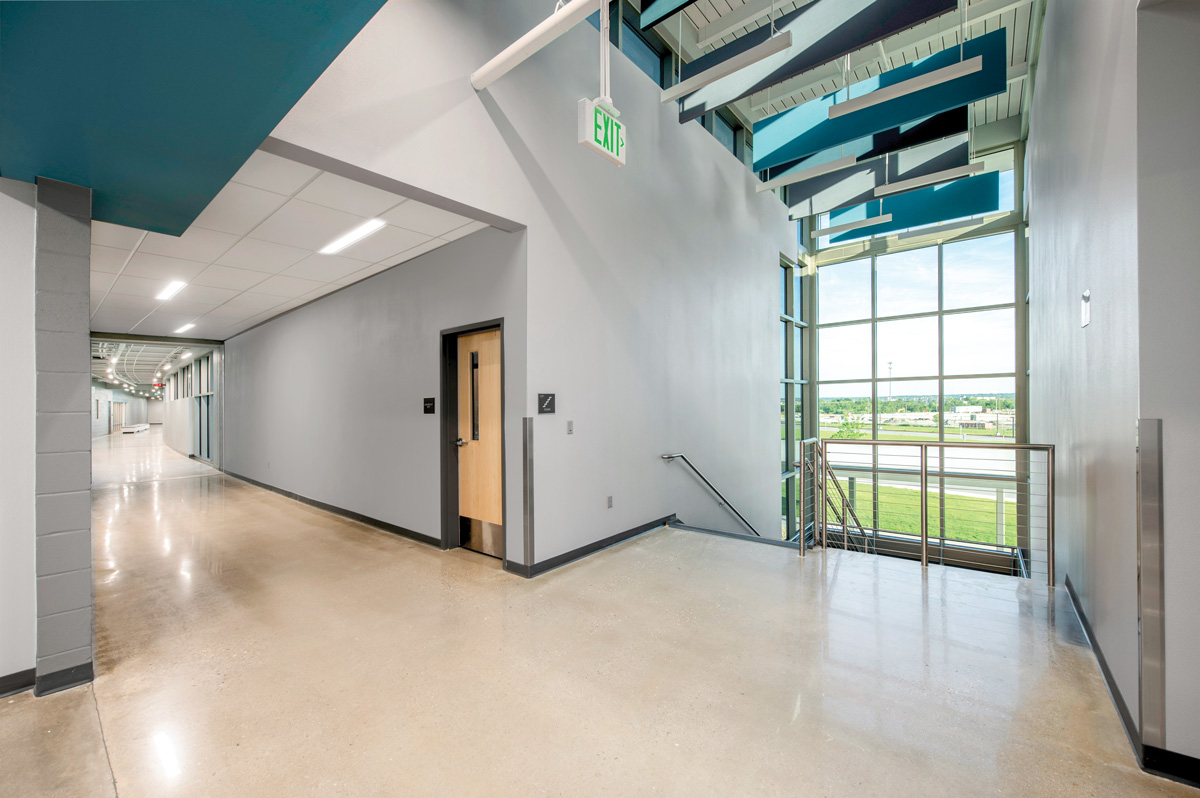

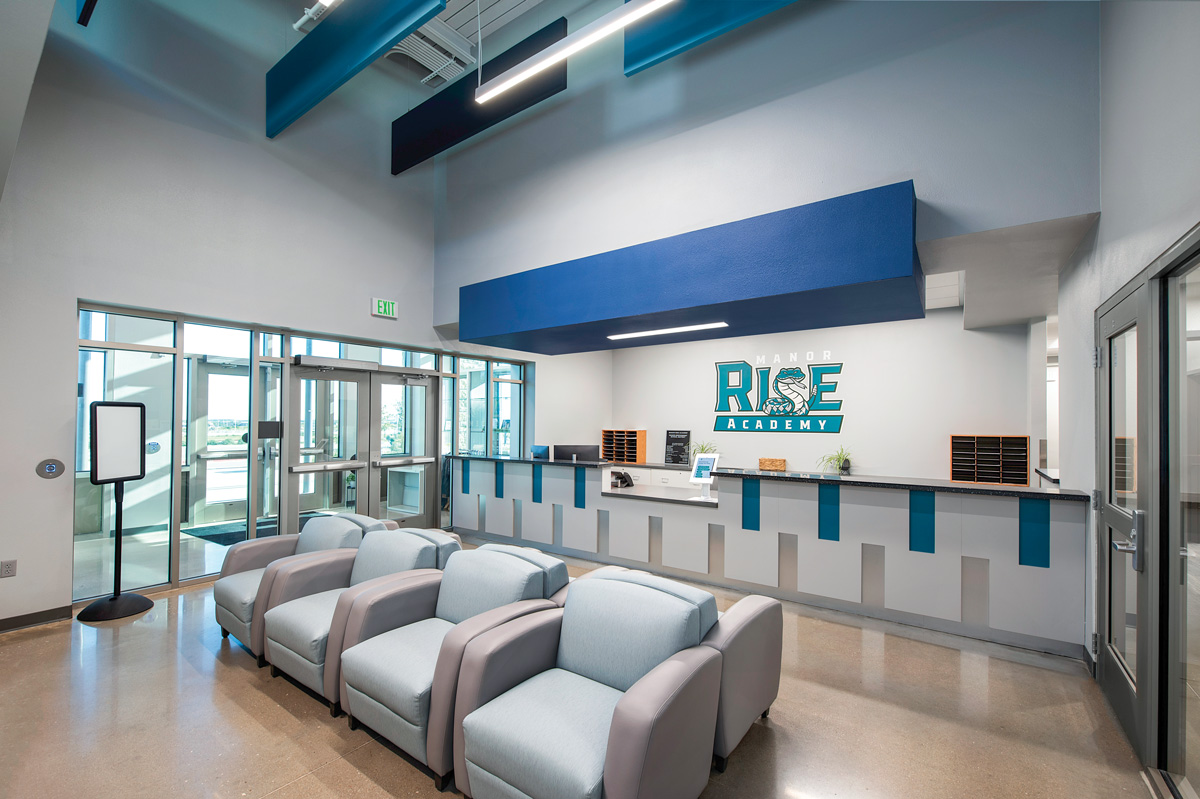

Inspiration
