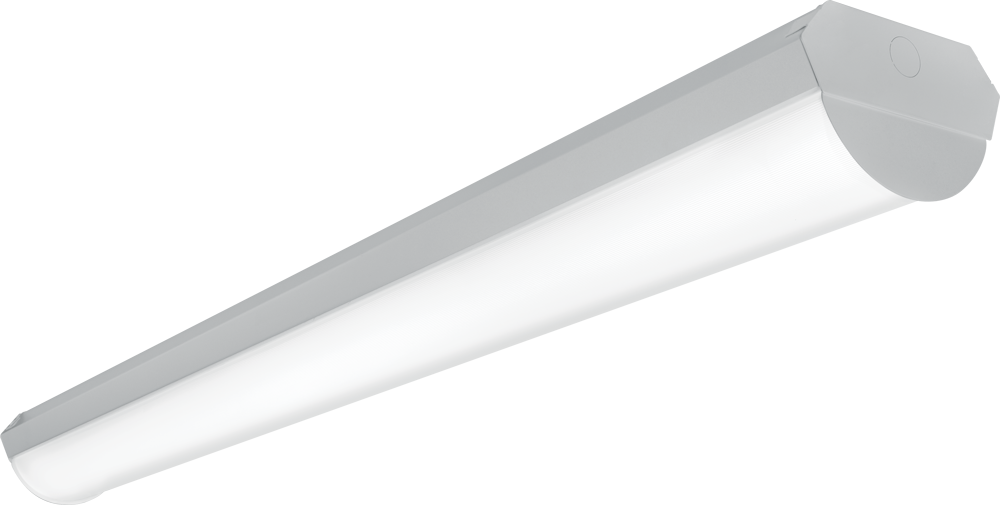

17 Low-Profile Wrap

Features

  • Available on QuickShip
  • Low-profile wrap-around provides uniform downward light distribution and subtle side illumination
  • Shallow depth provides low-profile appearance
  • Mounts easily as a single fixture or in continuous row installations
  • Diffuser is secured continuously along luminaire sides
  • Wireway is accessible without the use of tools
  • High-performance up to 141 lm/W
  • 2', 4', and 8' lengths available
  • Variety of mounting options for surface or suspended applications
  • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

20-gauge die-formed C.R.S. End plates constructed of 19-gauge die-formed C.R.S.

Shielding

Frosted prismatic acrylic diffuser with 15% DR additive, .100″ nominal thickness. Prismatic bottom and continuous wrap sides.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards.

Mounting

Surface or suspended.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing

20-gauge die-formed C.R.S. End plates constructed of 19-gauge die-formed C.R.S.

Shielding

Frosted prismatic acrylic diffuser with 15% DR additive, .100″ nominal thickness. Prismatic bottom and continuous wrap sides.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

Prewired for Type B, single or double end, non-shunted LED tubes, lamps by others.

Mounting

Surface or suspended.

Listings

• UL/CUL listed as LED surface luminaire suitable for dry or damp locations.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited fixture warranty, see details

Housing

20-gauge die-formed C.R.S. End plates constructed of 19-gauge die-formed C.R.S.

Shielding

Frosted prismatic acrylic diffuser with 15% DR additive, .100″ nominal thickness. Prismatic bottom and continuous wrap sides.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

Electronic ballast standard, instant start T8, program start T5, rated class P.

Mounting

Surface or suspended.

Listings

• UL/CUL listed as fluorescent luminaire suitable for dry or damp locations.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Finishes

Black

Bronze

Nickel

Alum

Silver

White

200+ RAL Colors
