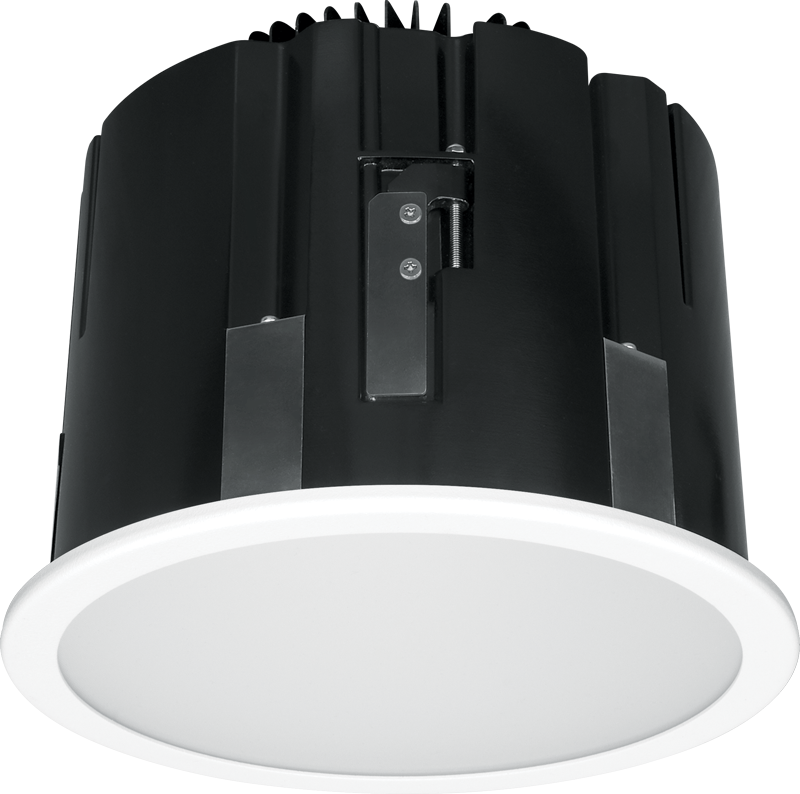

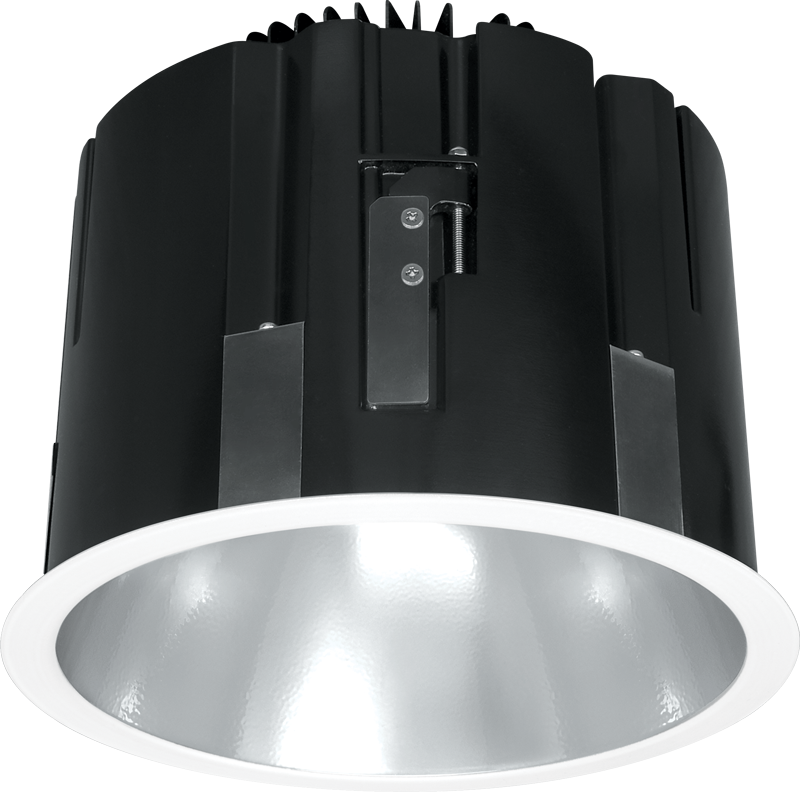

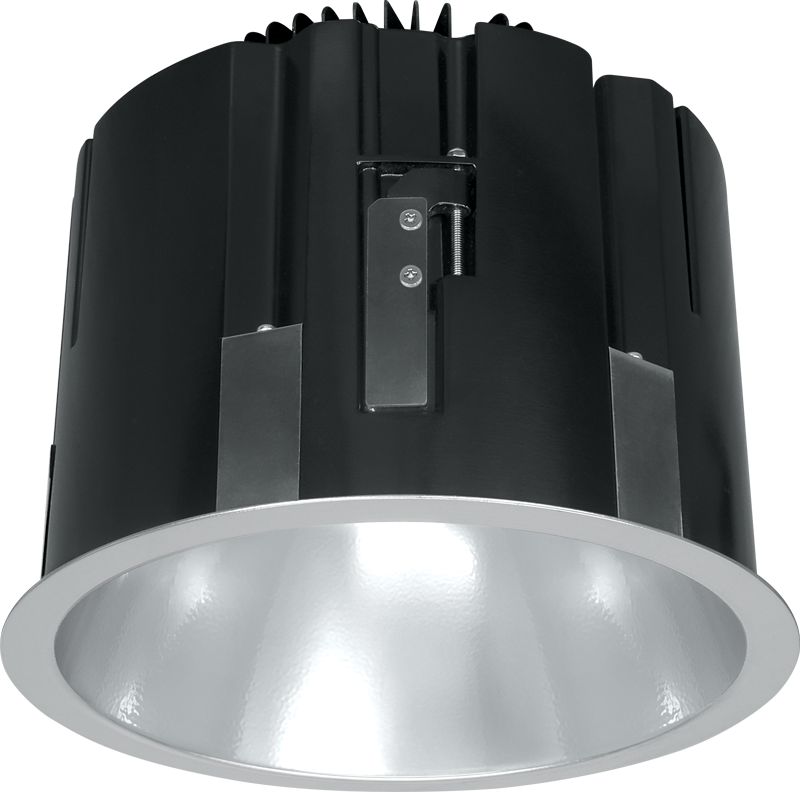

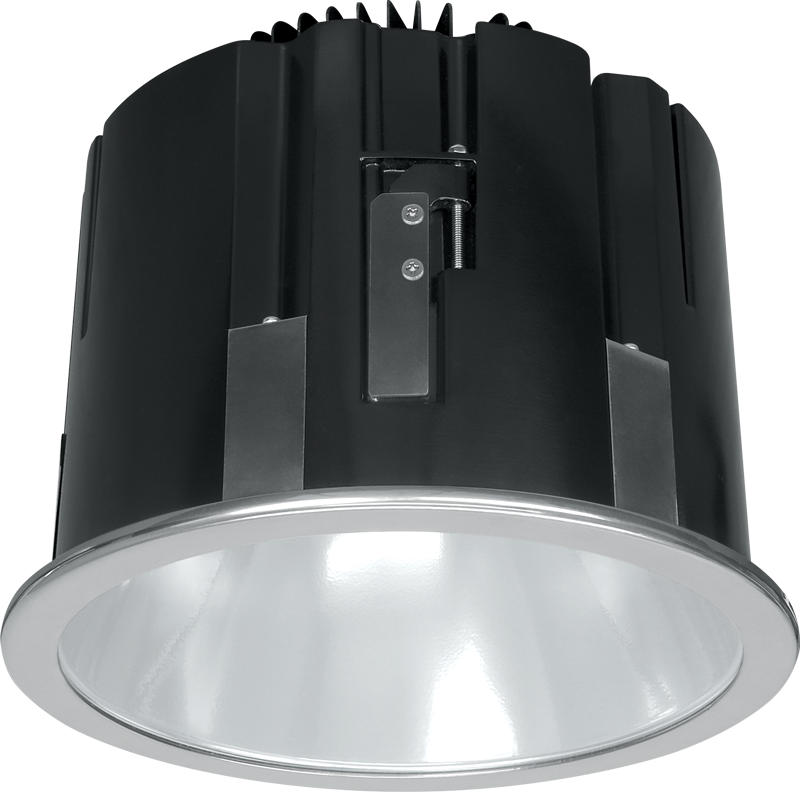

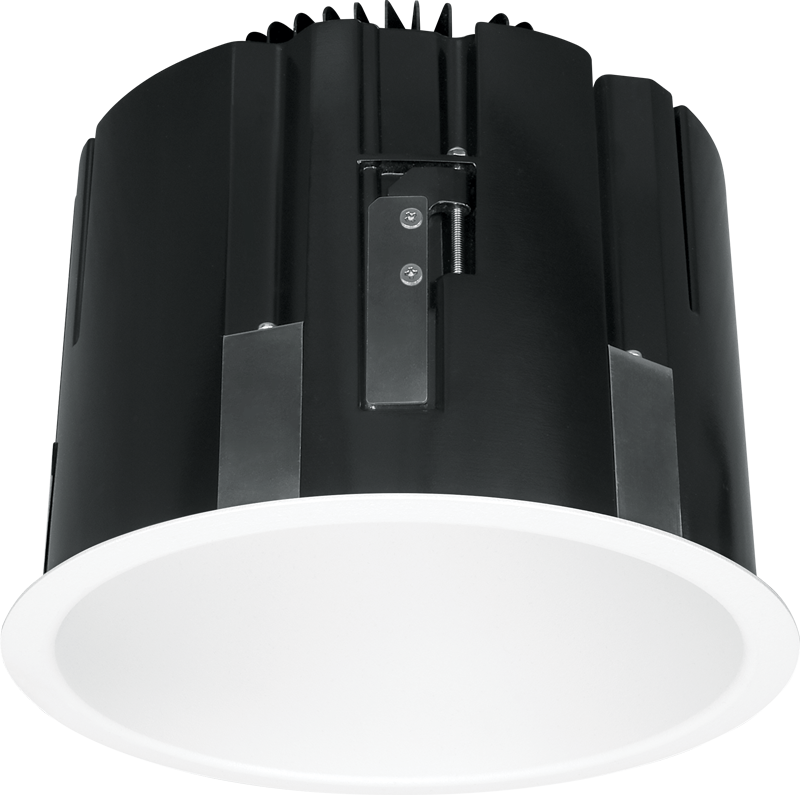

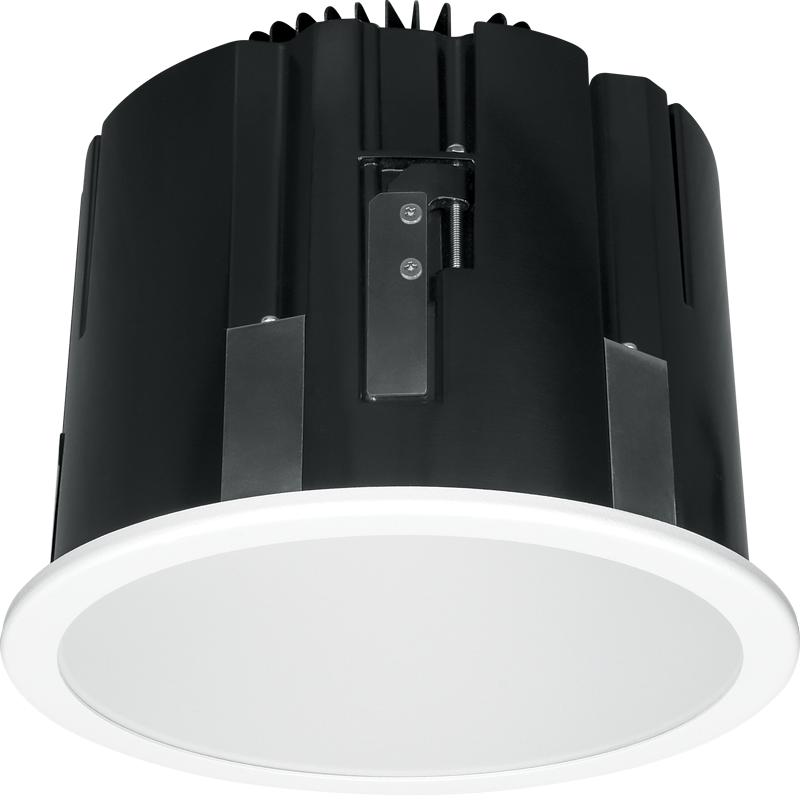

8DR 8″ Downlight – Round

Features

  • High-output illumination for tall ceiling applications
  • Beam angles ranging from 35º narrow to 65º wide for tailored performance
  • New construction mounting pan, IC-rated, or pan-less remodel kit available
  • Open reflector with nine finishes complement interior style
  • Contemporary design provides glare-free illumination for a soft ceiling appearance
  • Sloped adapter accommodates vaulted ceilings
  • Fully room-side accessible
  • Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

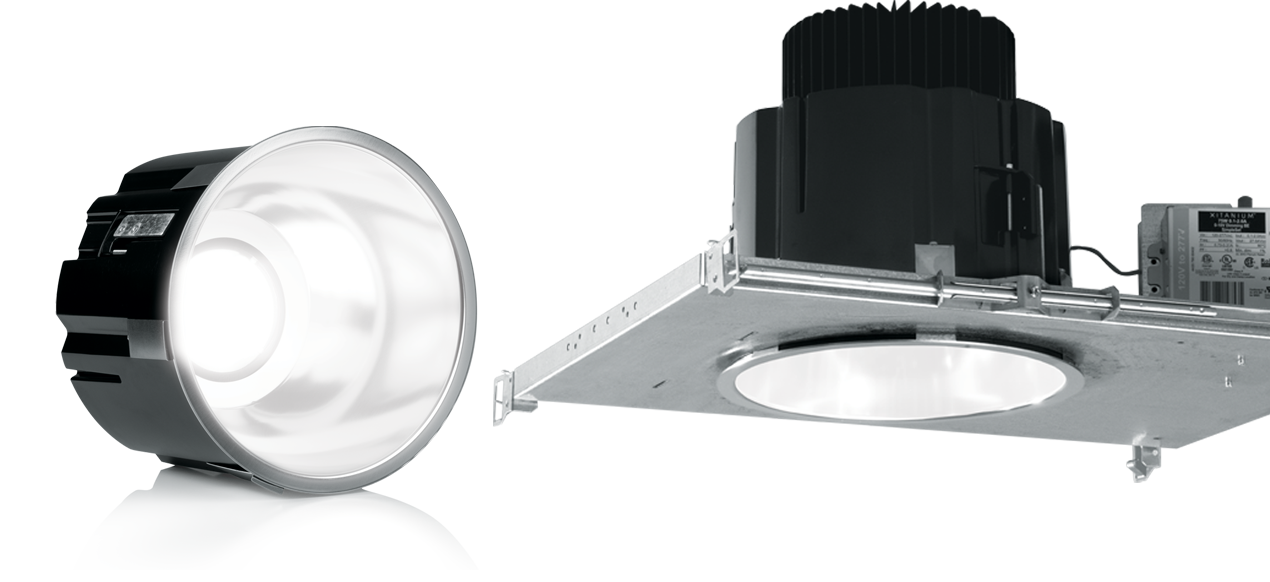

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 1-7/16″, additional ceiling thicknesses available.

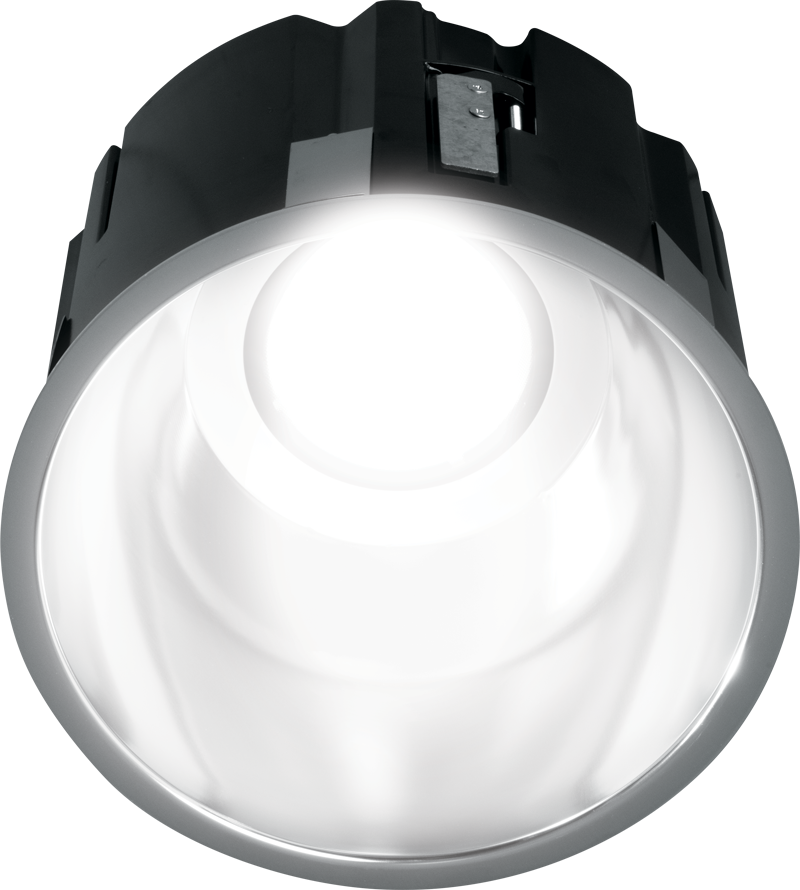

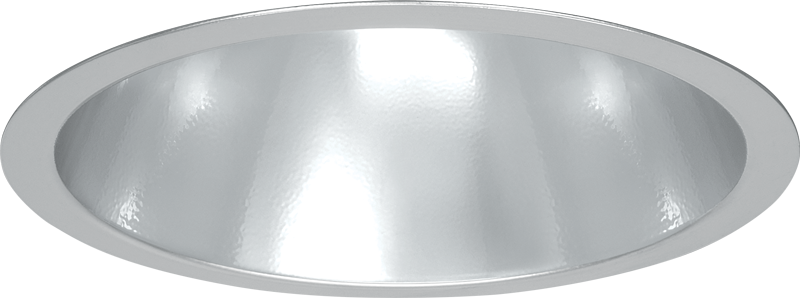

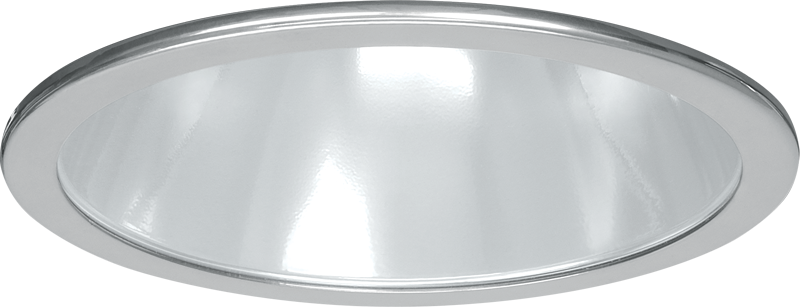

Open Reflector

Low-iridescent anodized aluminum with 1/2″ flange. Clear semi-specular finish standard.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.

Mounting

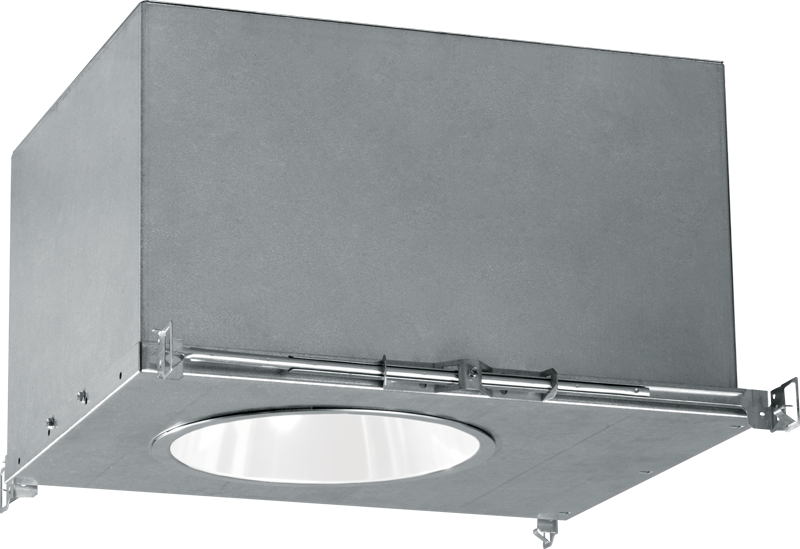

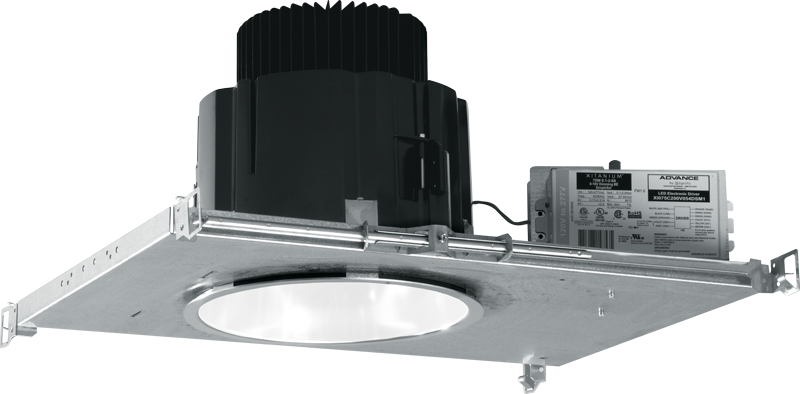

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for L60 - L80 lumen packages.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 1-7/16″, additional ceiling thicknesses available.

Open Reflector

Low-iridescent anodized aluminum with 1/2″ flange. Clear semi-specular finish standard.

Electrical

High-performance Class 2 LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>50,000 hours. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for P44 lumen package and higher.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

System Requirements

• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system
• For additional PoE info, see details
• Consult factory for design support

Housing

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 1-7/16″, additional ceiling thicknesses available.

Open Reflector

Low-iridescent anodized aluminum with 1/2″ flange. Clear semi-specular finish standard.

Electrical

High-performance Class 2 LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>50,000 hours. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ –1-7/16″, additional ceiling thicknesses available.

Open Reflector

Low-iridescent anodized aluminum with 1/2″ flange. Clear semi-specular finish standard.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Reflector Finishes

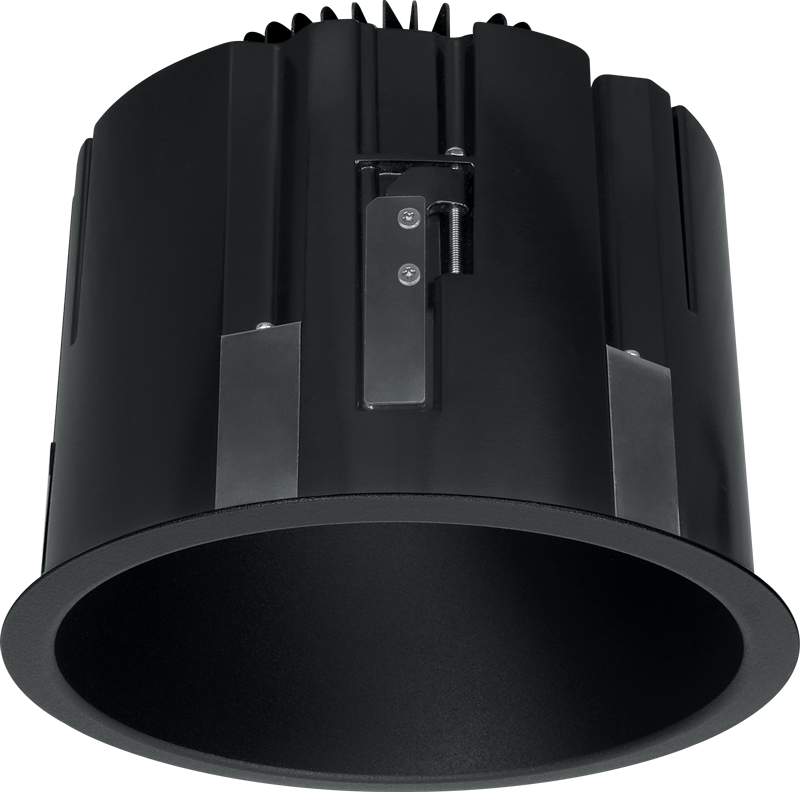

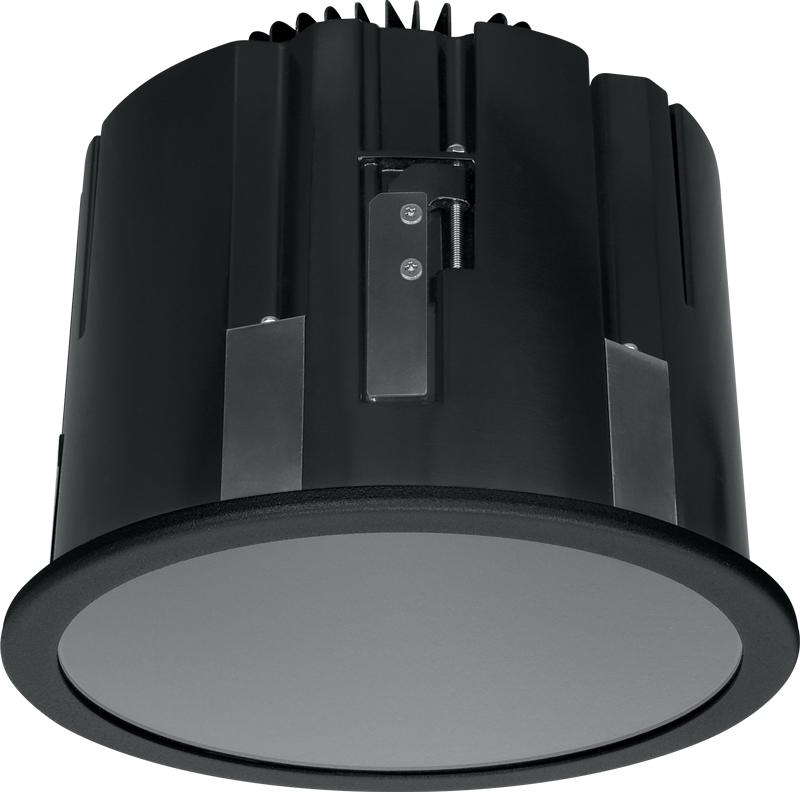

Black

White

Clear Semi-Spec

Satin Glow

Clear Spec

Champagne Gold

Gold

Rose Gold

Pewter

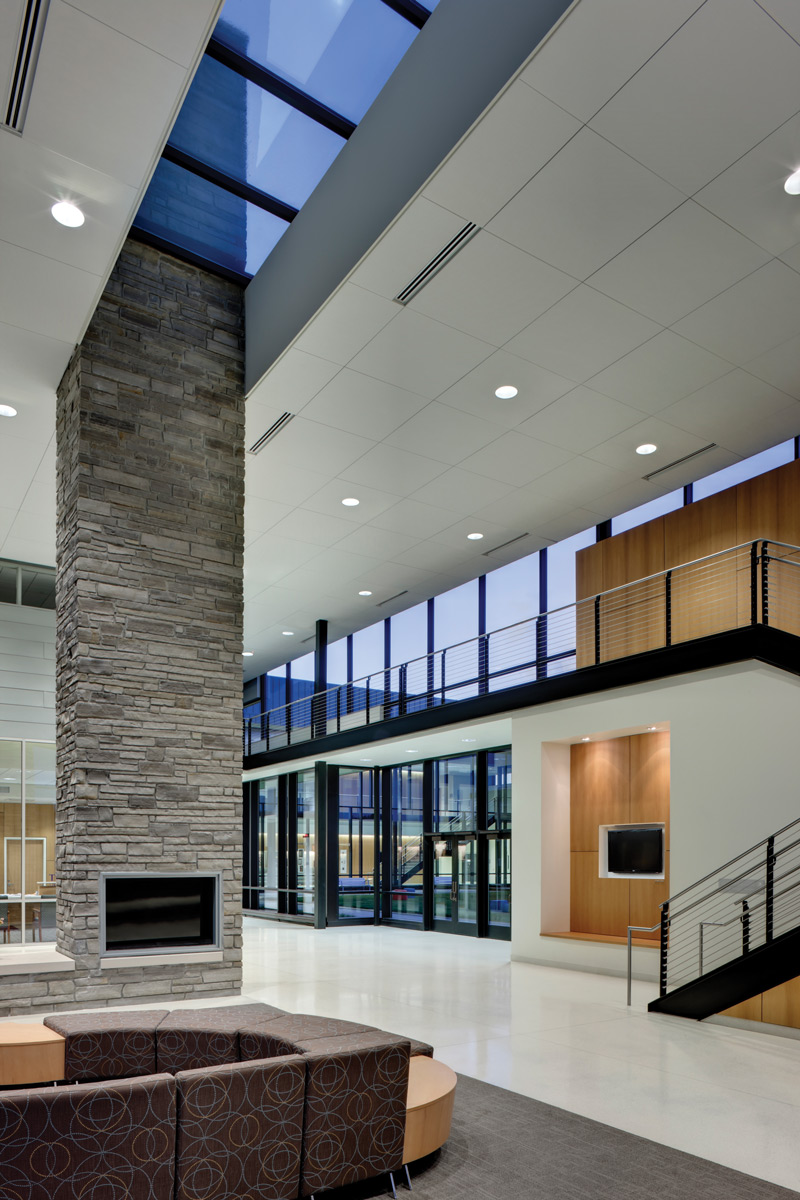

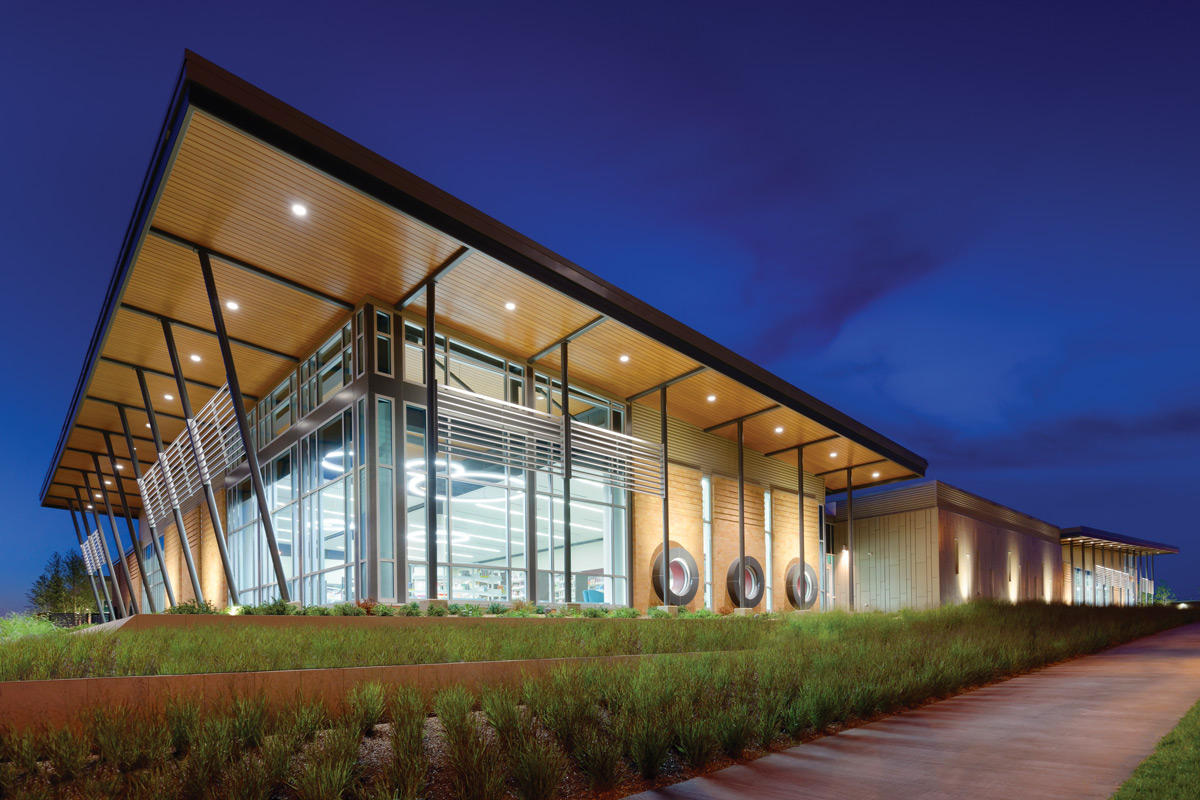

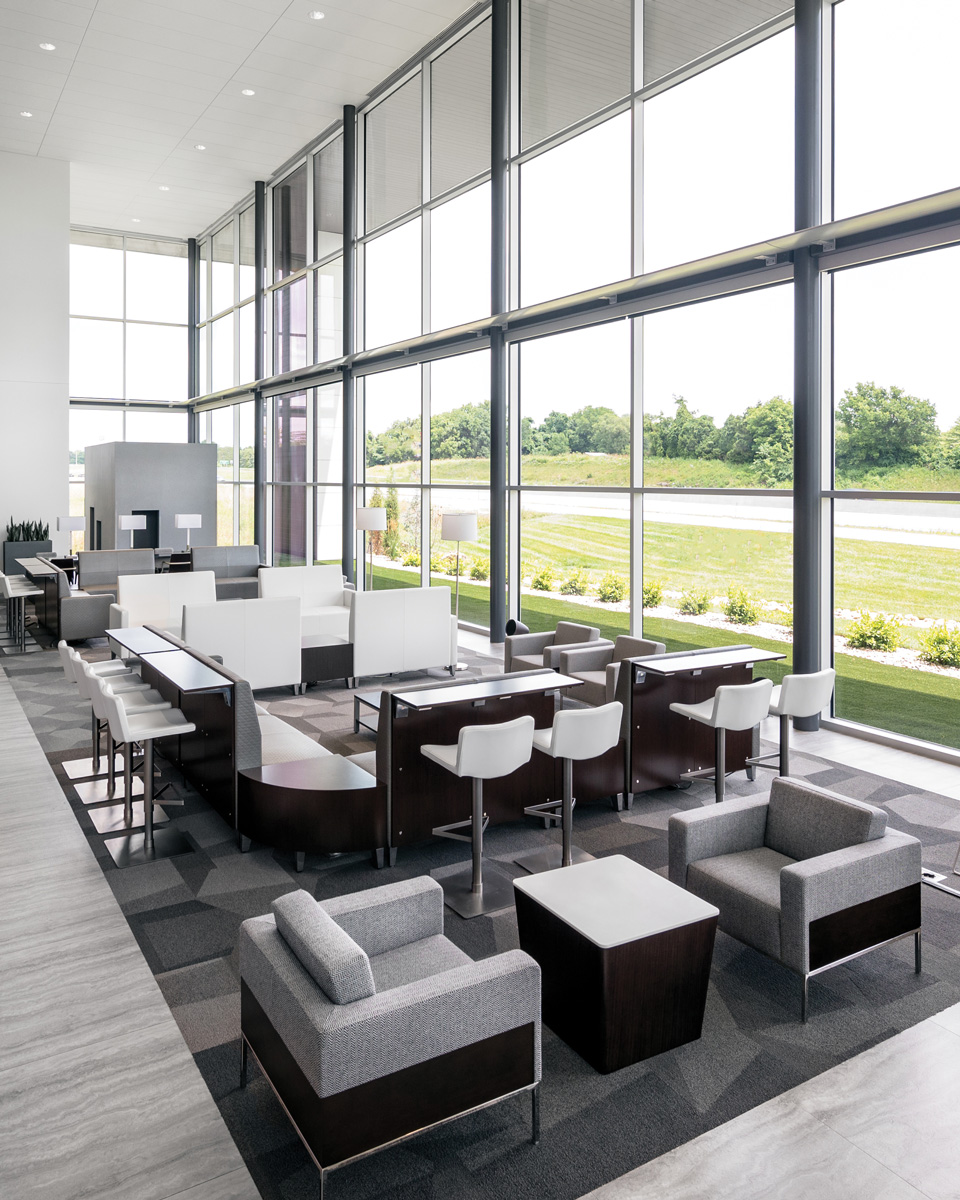

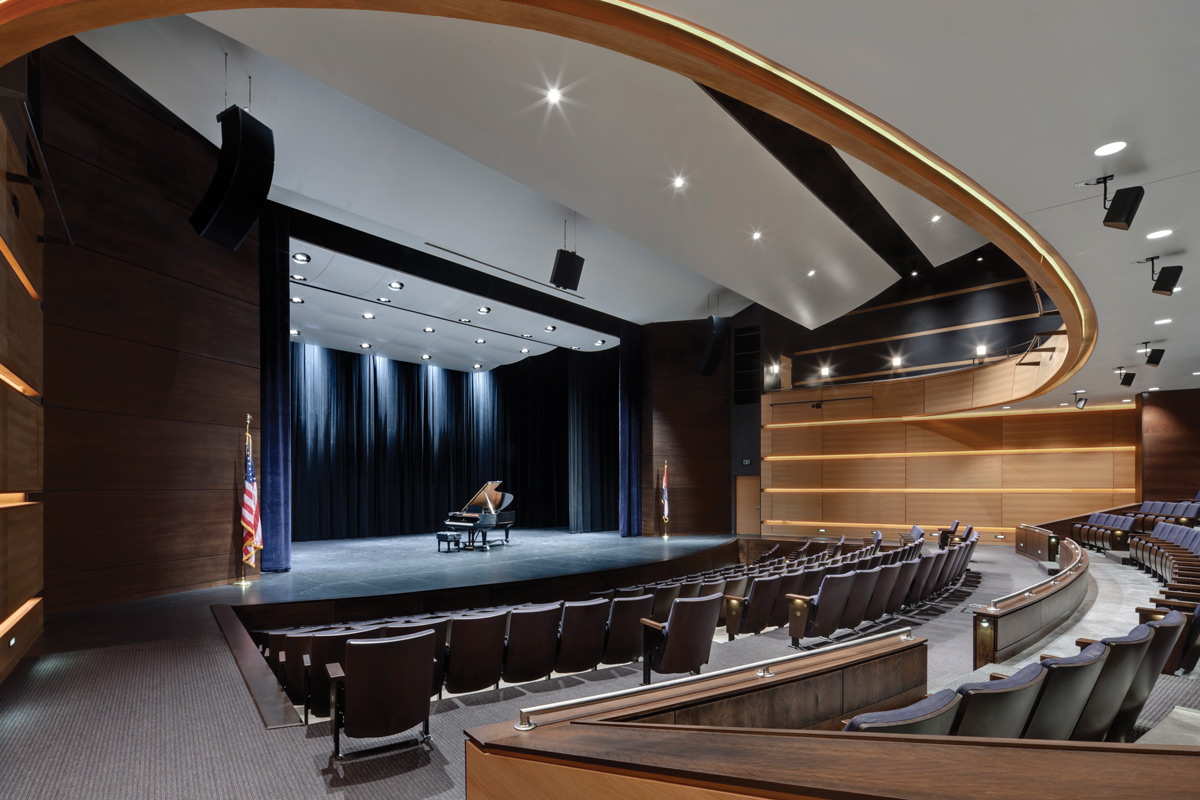

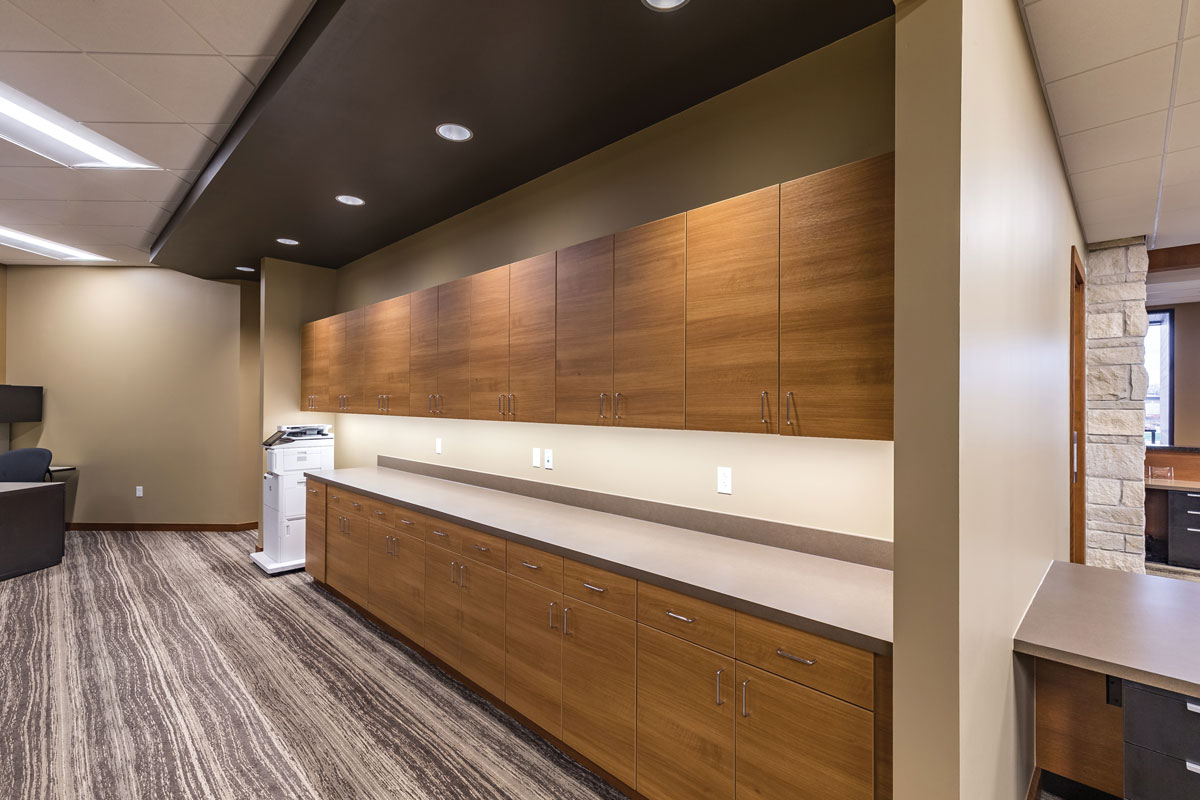

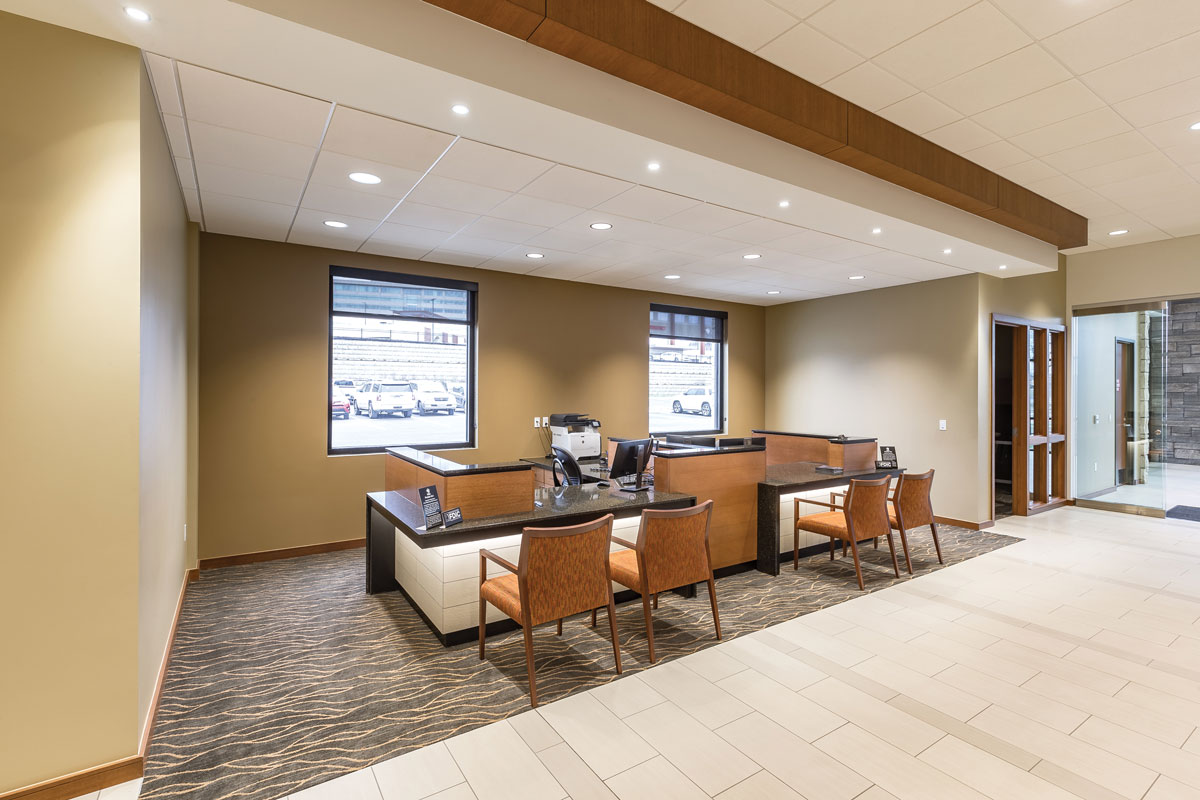

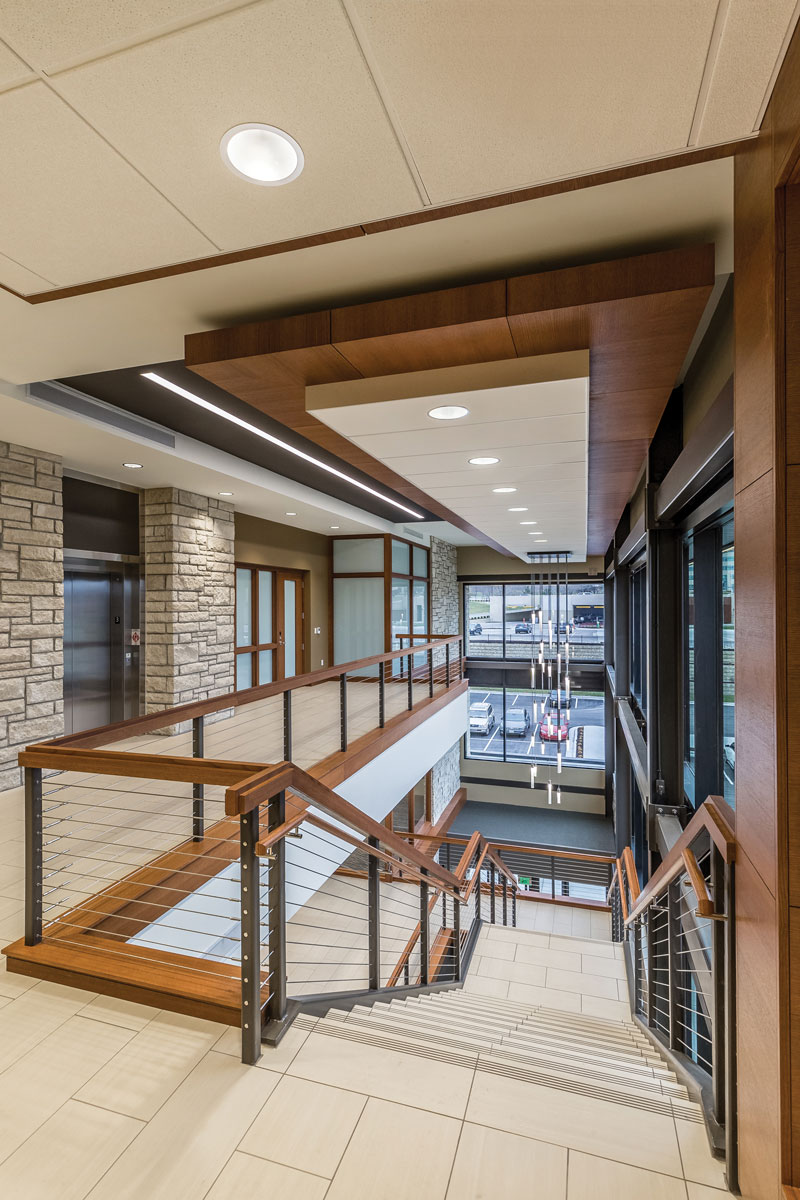

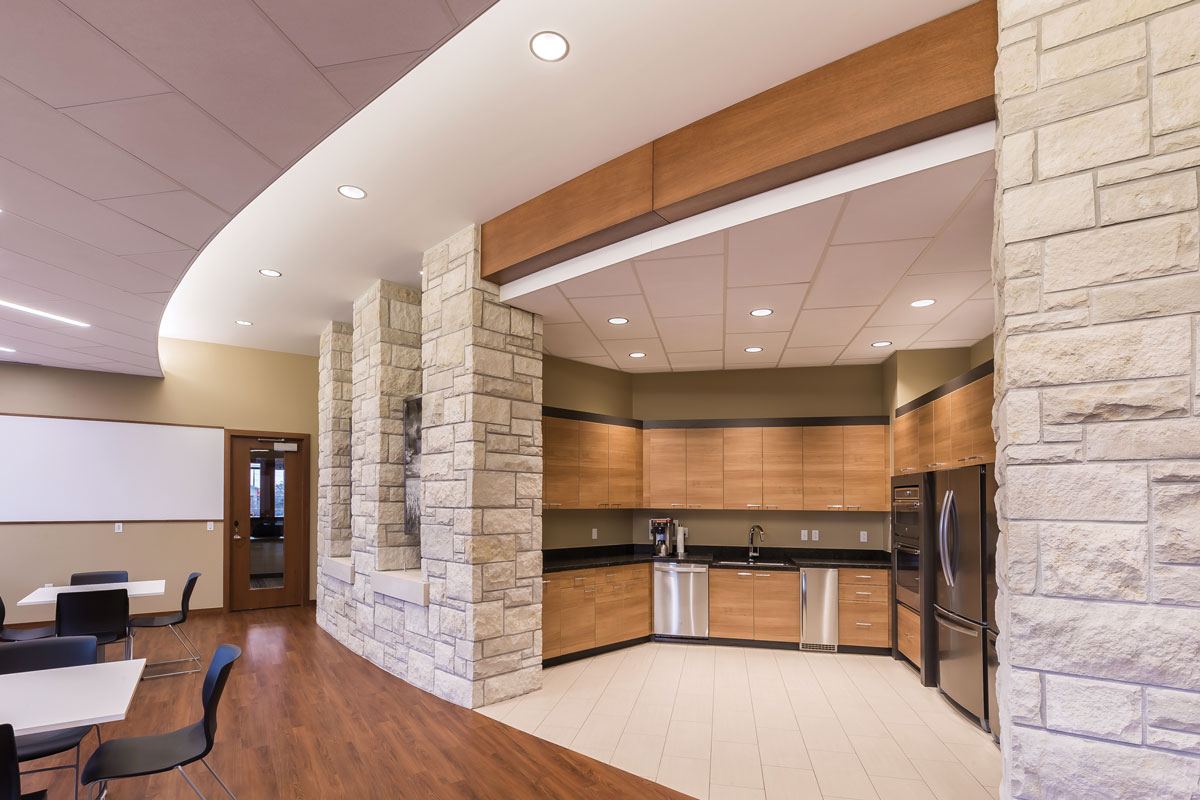

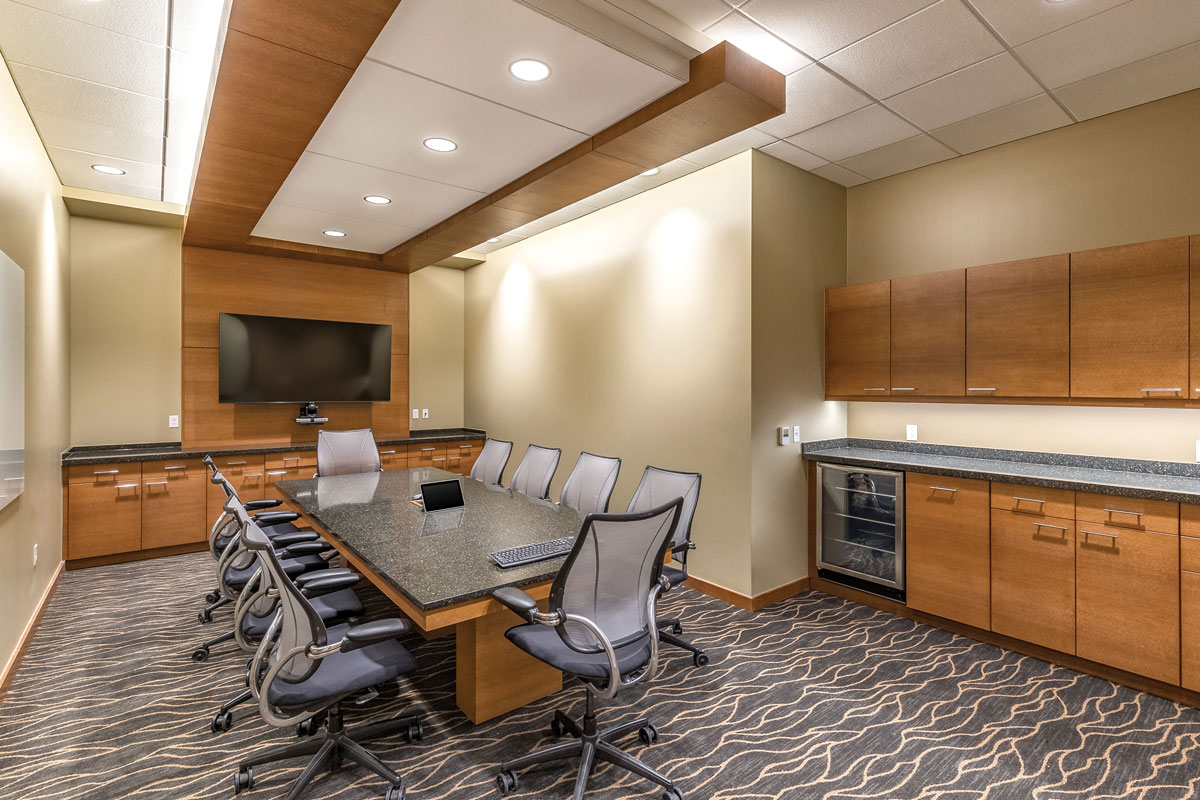

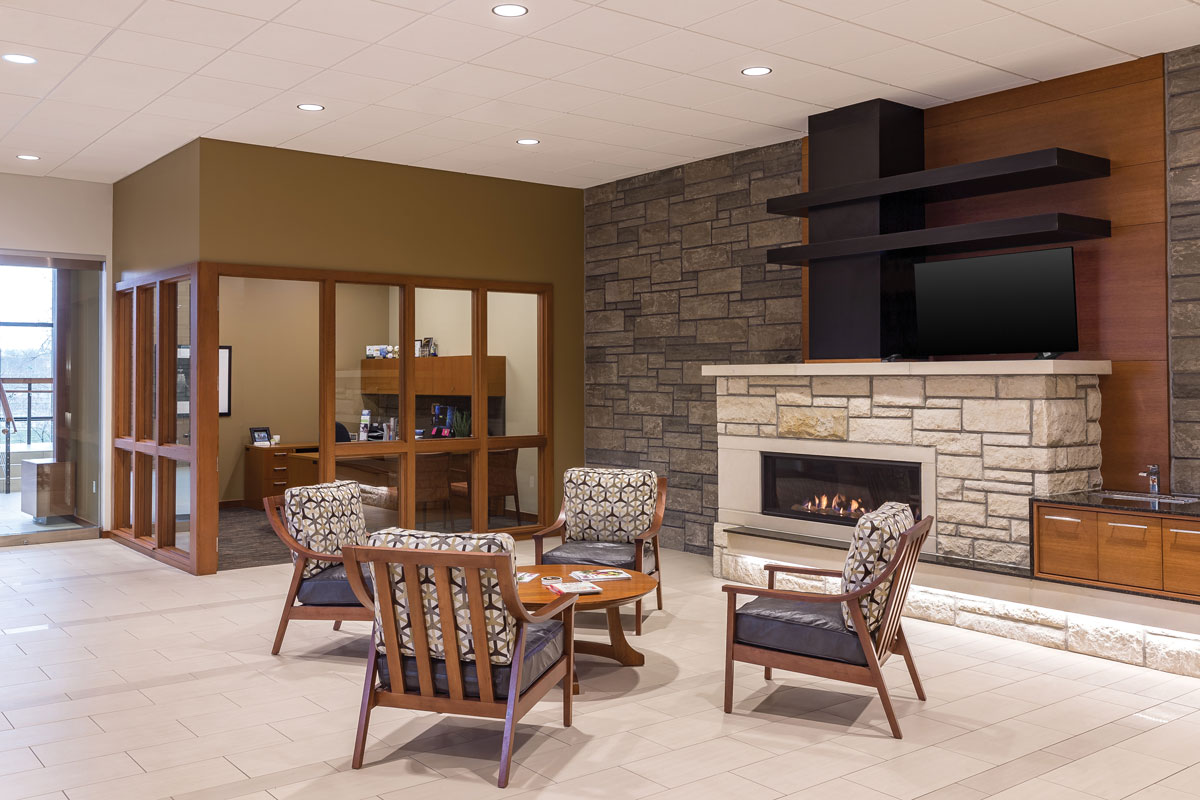

Inspiration
