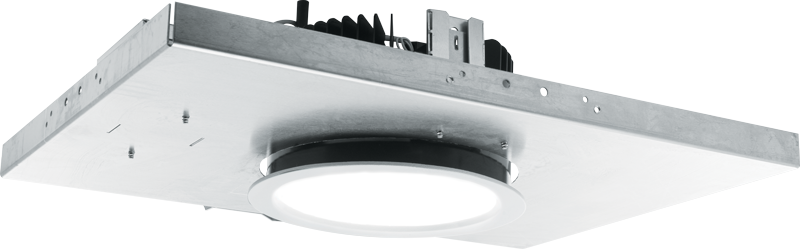

M6PR 6″ MRI Shallow Plenum Downlight – Round

Features

  • Innovative TrimLock® reflector retention system ensures the trim remains flush with the ceiling plane
  • Designed with non-ferrous materials for MRI imaging suites
  • IP65-rated die-cast trim includes easy-to-clean flush lens
  • Slim 5 inch depth for minimal plenum space applications
  • Beam angles ranging from 25º narrow to 85º wide for tailored performance
  • Industry-leading efficacies as high as 106 lm/W
  • Contemporary design provides glare-free illumination for a soft ceiling appearance
  • IP65-rated die cast trim includes easy-to-clean flush lens
  • Fully room-side accessible
  • Low UGR meets LEED and WELL requirements
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
  • Buy American Act compliant
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Spun housing with forged aluminum heat sink. Aluminum splice compartment. Trim housing adjusts for ceiling thickness from 1/2″ - 1-1/2″.

Trimlock

Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to splice compartment. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours. Remote mounted driver enclosure required, ordered separately, must be located outside MRI room, RF filter required, provided by others.

Mounting

Recessed. Aluminum mounting pan for new construction or IC-rated enclosure. Minimum 24″ O.C. marked spacing required for L50 lumen package. Remote mounted driver box must be located outside MRI room, RF filter required, provided by others.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing

Spun housing with forged aluminum heat sink. Aluminum splice compartment. Trim housing adjusts for ceiling thickness from 1/2″ - 1-1/2″.

Trimlock

Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens.

Electrical

High-performance Class 2 LED array. Modular quick-connect plug for easy field-connection of LED light assembly to splice compartment. Reported L70>50,000 hours. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses. Remote mounted driver box must be located outside MRI room, RF filter required, provided by others.

Mounting

Recessed. Aluminum mounting pan for new construction or IC- rated enclosure. Remote mounted driver enclosure required, ordered separately, must be located outside MRI room.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing

Spun housing with forged aluminum heat sink. Aluminum splice compartment. Trim housing adjusts for ceiling thickness from 1/2″ - 1-1/2″.

Trimlock

Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours. RF filter required, provided by others.

Mounting

Recessed. Aluminum mounting pan for new construction or IC- rated enclosure. Remote mounted driver box must be located outside MRI room, RF filter required, provided by others.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Reflector Finishes

Black

White

Clear Semi-Spec

TrimLock Details

Twist

Pull

Release
