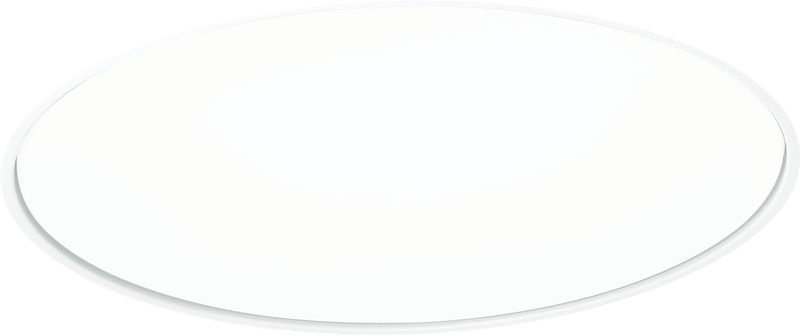

RND Round Architectural Recessed
Features
- Provides soft, uniform ambient illumination
- Flat, convex, or concave lens profile adds visual interest to a variety of applications
- Adjustable ring and lens assembly provides clean appearance
- Inner flange prevents light leaks
- Lift-and-twist lens assembly allows for easy maintenance
- Drywall or grid system installation

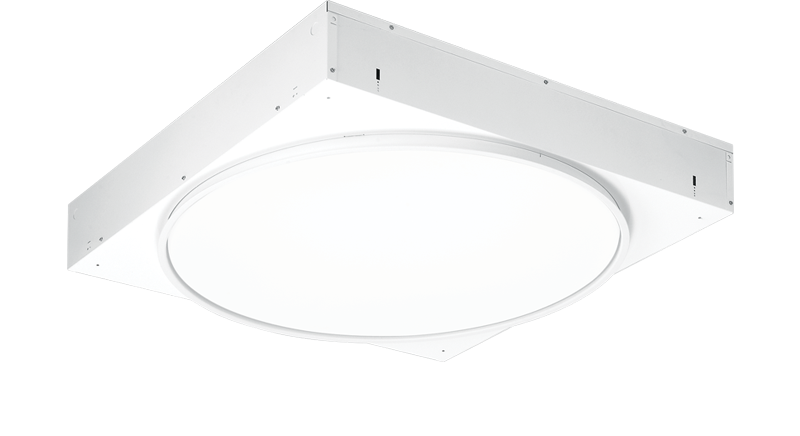

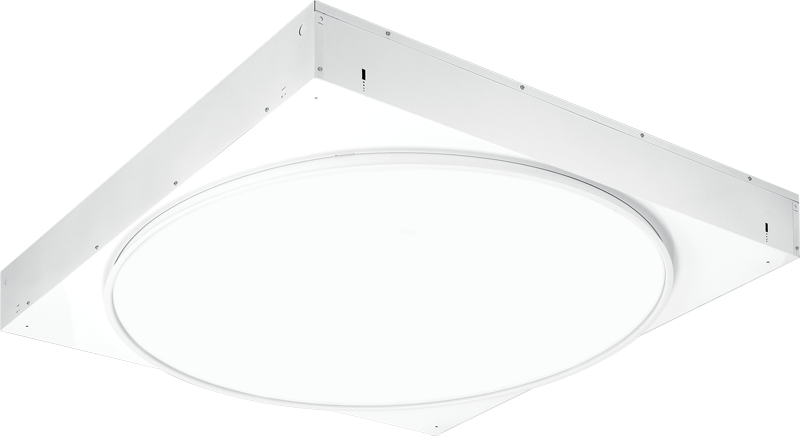

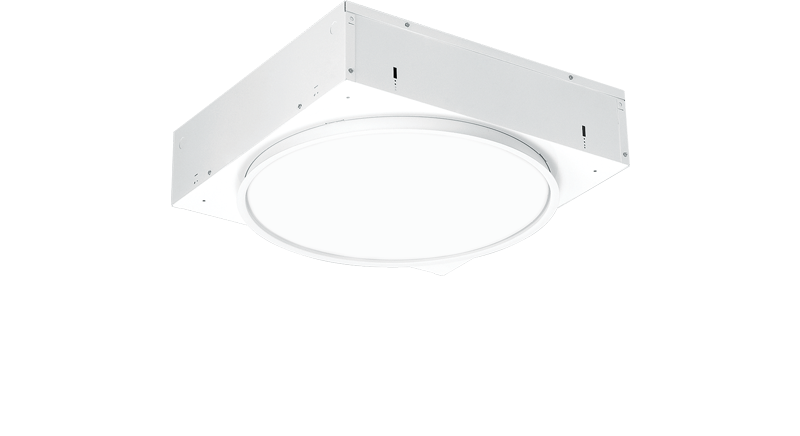

- 2', 3', and 4' diameters available
- Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
- Combine multiple mounting types to create a unique and modern space
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
Tools
Estimate fixture quantities and light levels.
Configure fixtures and streamline the ordering process.
Use your zip code to find your local agent.
Specifications
|
Housing |
20-gauge C.R.S. |
|
Shielding |
Frosted acrylic lens, .125″ thick. |
|
Finish |
92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal on reflective surfaces. Textured matte white powder after fabrication to facilitate installation, increase efficiency, and inhibit corrosion. |
|
Electrical |
High-quality mid-power LED boards. L85 at 50,000 hours. 25ºC maximum ambient operating temperature. 50/60 Hz constant current driver. |
|
Mounting |
For installation in NEMA Type “G”, “SS”, or “F” ceiling systems. Earthquake clips are standard. Fixture must be installed prior to ceiling system installation. |
|
Listings |
• cCSAus certified as luminaire suitable for dry or damp locations. • City of Chicago Environmental Air approved when specified with CP option. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american. |
|
Warranty |
5-year limited warranty, see details |
|
Housing |
20-gauge C.R.S. |
|
Shielding |
Frosted acrylic lens, .125″ thick. |
|
Finish |
92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal on reflective surfaces. Textured matte white powder after fabrication to facilitate installation, increase efficiency, and inhibit corrosion. |
|
Electrical |
High-quality mid-power LED boards. L85 at 50,000 hours. Low-voltage DC fixture, to be fed by Class 2 power supply. |
|
Mounting |
For installation in NEMA Type “G”, “SS”, or “F” ceiling systems. Earthquake clips are standard. Fixture must be installed prior to ceiling system installation. |
|
Listings |
• cCSAus certified as luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american. |
|
Warranty |
5-year limited warranty, see details |
|
System Requirements |
• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system • For additional PoE info, see details |
Downloads

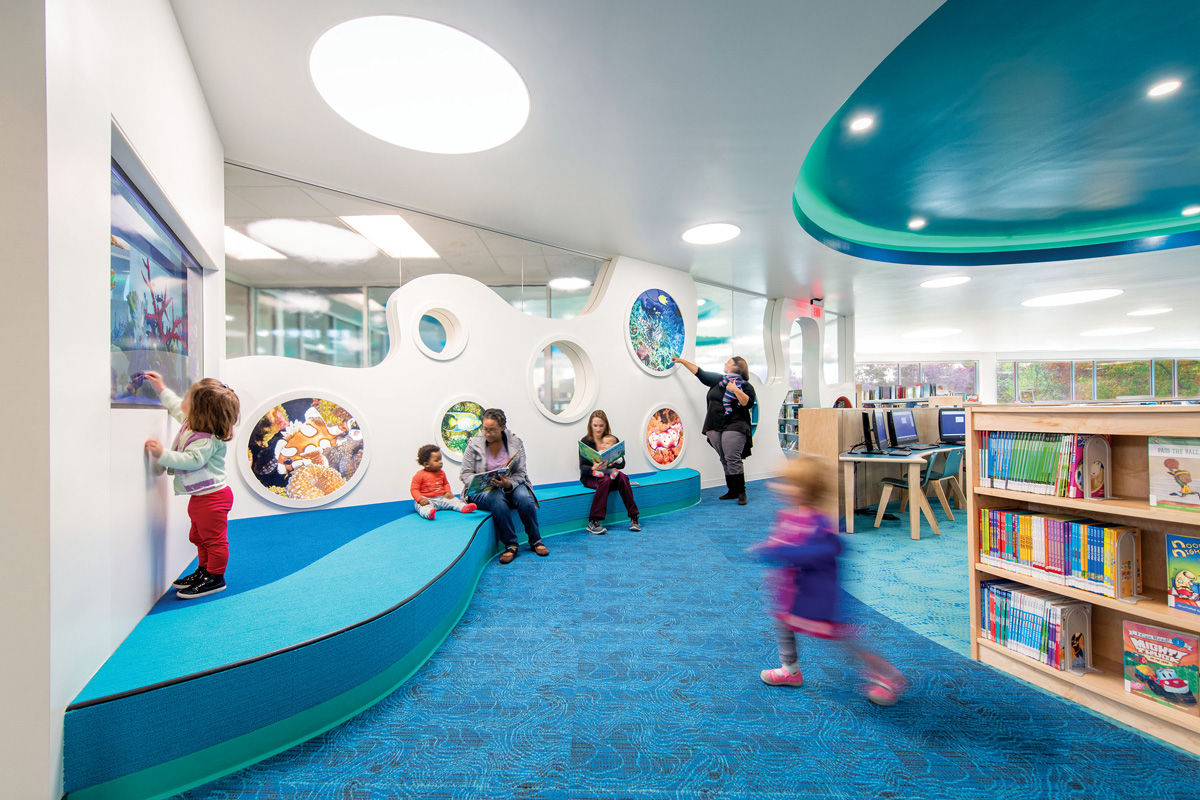

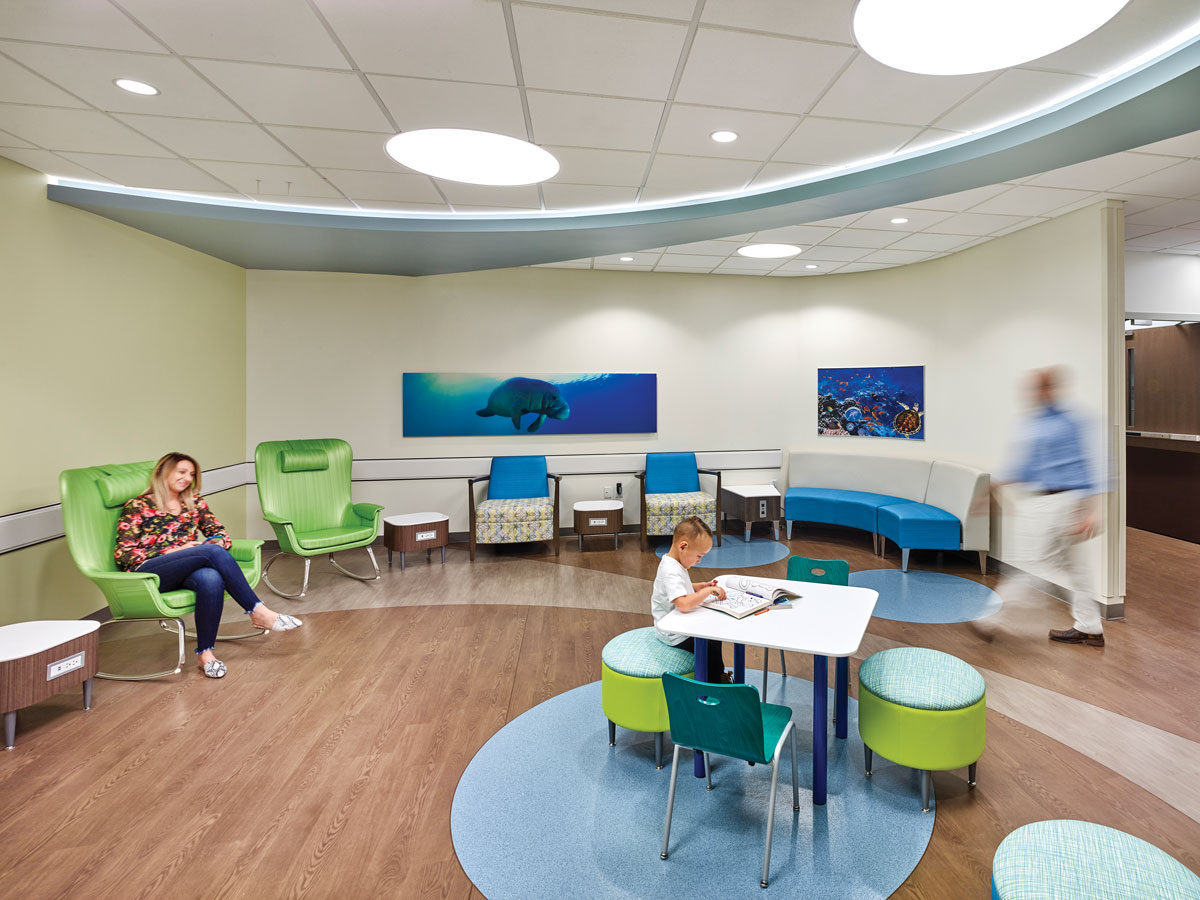

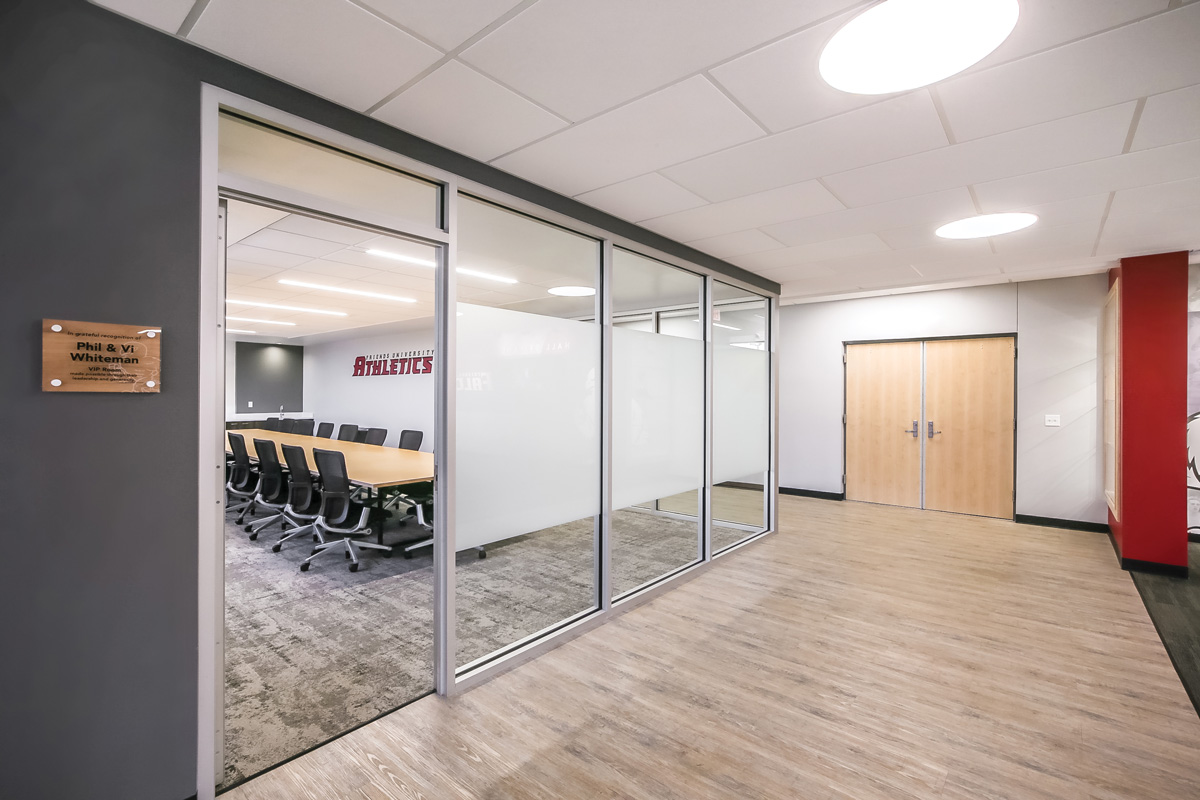

Inspiration
